Shoulder Location Gages

Depth

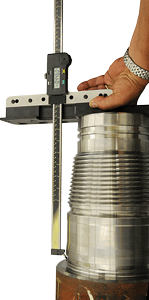

Our digital depth gages inspect the location of internal and external shoulder and grooves from the face of pin and box connections or other datum surfaces. The DG-1000 Series is available with the standard base, a 12″ base, and a 20″ base. These gages are available in ranges: 0 – 8”, 0 – 12″, 0 – 18″, and 0 – 24″.

The standard gage (DG-1000 Series) is supplied with a 7” extension arm and a 0° and 45° contact point holder for use with any #4-48 threaded contact point (one .072″ contact point (T072) supplied unless otherwise requested). Longer extension arms and other contact point configurations and adapters are available upon request. The 12″ (DG-1200 Series) and 20″ (DG-2000 Series) gages include one double sided blade contact instead of a contact point and a contact point holder.

Digital depth gages do not requires a setting standard. The gage is preset to zero on any flat surface and then applied to the product. Actual length measurements display on the gage’s digital readout.

Features

Calipers
Inspect internal an external shoulder and groove locations.
Uses an interchangeable contact point or blade that can service many different applications.
Inch/metric conversion with digital readout
Digital readout with .0005″/.01 mm resolution and SPC Output

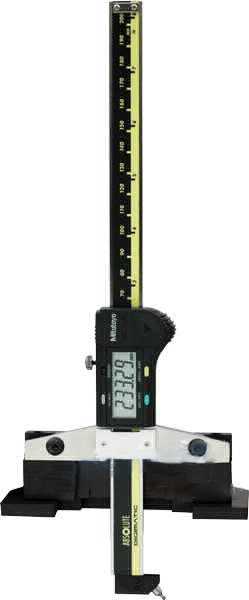

8” Base Digital Depth Gages

Range	Indicator Resolution	Description	Model
0” – 8” (0 mm – 203.2 mm)	.0005”/.01 mm	8″ Base Digital Depth Gage	DG-1008
0” – 12” (0 mm – 304.8 mm)	.0005”/.01 mm	8″ Base Digital Depth Gage	DG-1012
0” – 18” (0 mm – 457.2 mm)	.0005”/.01 mm	8″ Base Digital Depth Gage	DG-1018
0” – 24” (0 mm – 609.6 mm)	.0005”/.01 mm	8″ Base Digital Depth Gage	DG-1024

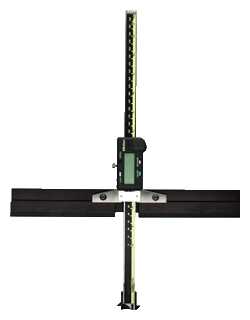

12” Base Digital Depth Gages

Range	Indicator Resolution	Description	Model
0” – 8” (0 mm – 203.2 mm)	.0005”/.01 mm	12″ Base Digital Depth Gage	DG-1208
0” – 12” (0 mm – 304.8 mm)	.0005”/.01 mm	12″ Base Digital Depth Gage	DG-1212
0” – 18” (0 mm – 457.2 mm)	.0005”/.01 mm	12″ Base Digital Depth Gage	DG-1218
0” – 24” (0 mm – 609.6 mm)	.0005”/.01 mm	12″ Base Digital Depth Gage	DG-1224

20” Base Digital Depth Gages

Range	Indicator Resolution	Description	Model
0” – 12” (0 mm – 304.8 mm)	.0005”/.01 mm	20″ Base Digital Depth Gage	DG-2012
0” – 18” (0 mm – 457.2 mm)	.0005”/.01 mm	20″ Base Digital Depth Gage	DG-2018
0” – 24” (0 mm – 609.6 mm)	.0005”/.01 mm	20″ Base Digital Depth Gage	DG-2024

Depth Gage Accessories

Type	Range	Description	Model
Extension Arm	–	7” Extension Arm	DG-1000-R7
Extension Arm	–	16” Extension Arm	DG-1000-R16
Extension Arm	–	24” Extension Arm	DG-1000-R24
Extension Arm/Stabilizer	–	36” Stabilizer/Extension Arm	DG-1000-R36
Base Plate Assembly	–	DG-1000 Series Base Plate Assembly	DG-1000-BPA
Double Foot	–	Shoulder Location Double Foot for DG-1208 and DG-1212	DG-1212-DF
Double Foot	–	Shoulder Location Double Foot for DG-1218 and DG-1224	DG-1218-DF
Blade Contact	8” & 12”	Blade Contact for 8 and 12 inch ranges for DG-1200/2000	DG-B-812
Blade Contact	18” & 24”	Blade Contact for 18 and 24 inch ranges for DG-1200/2000	DG-B-1824
Double Sided Blade Contact	8” & 12”	Double Sided Blade Contact for 8 and 12 inch range DG-1200/2000	DG-DSB-812

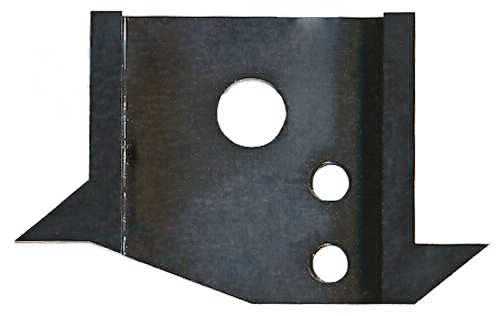

Double Sided Blade Contact	18” & 24”	Double Sided Blade Contact for 18 and 24 inch range DG-1200/2000	DG-DSB-1824
Groove Locator	8” & 12”	Groove Locator, .100” thick for DG-1008 and DG-1012	DG-GV-812

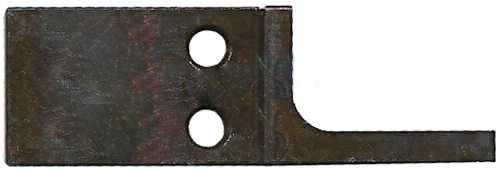

Groove Locator	18” & 24”	Groove Locator, .100” thick for DG-1018 and DG-1024	DG-GV-1284

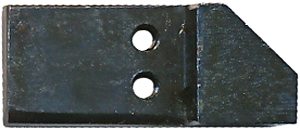

Point Holder	8” & 12”	45° Contact Point Holder for DG-1008 and DG-1012	DG-P45-1824
Point Holder	18” & 24”	45° Contact Point Holder for DG-1018 and DG-1024	DG-P45-1824

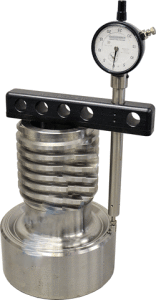

TS 1000 on Thread back 156x300 - Shoulder Location Gages

Torque Shoulder Length

Both the TS-1000 and TS-4000 series of gages accurately measure the distance between the primary and secondary torque shoulders on both internal and external threaded connections. Used industry wide to measure the shoulder-to-shoulder distance on premium tool joins and the face-to-seal location on premium couplings, Gagemaker TS gages are also perfectly suited to locate grooves from various datum surfaces.

All TS gages require a setting standard. The gage is preset to the desired dimension and deviation is read from the gage’s dial indicator. Standards are sold separately.

The TS-1000 is supplied with a 6″ extension arm. A 45° contact point holder for use with any #4-48 threaded contact point is also supplied. Longer extension arms, other contact points, and adapters are available upon request.

TS-4000 gages require taper specific wear pads that are sold separately.

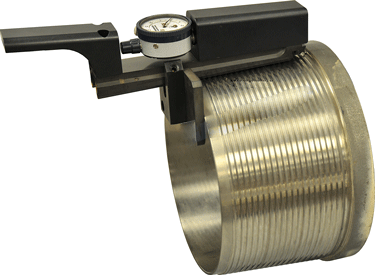

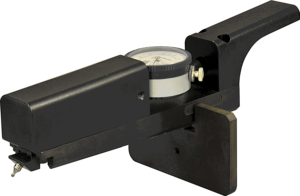

TS4000 on Part back - Shoulder Location Gages

Feature

Inspects internal and external shoulder and groove locations
Uses an interchangeable contact point that can service many different applications

Torque Shoulder Length Gages & Standards

Connection Size	Depth Range	Indicator Resolution	Base Length	Description	Model
Any	1” – 6” (25.4 mm – 152.4 mm)	.0005″	6”	6″ base torque shoulder length gage with 6″ extension arm and 45° contact point holder	TS-1000
Any	1” – 6” (25.4 mm – 152.4 mm)	.0001″	6”	High resolution 6″ base torque shoulder length gage with 6″ extension arm and 45° contact point holder	TS-1000-1
Any	1” – 6.5” (25.4 mm – 165.1 mm)	.0005″	12”	12″ base torque shoulder length with 6″ extension arm and 45° contact point holder	TS-1001
Any	1” – 6.5” (25.4 mm – 165.1 mm)	.0001″	12”	High resolution 12″ base torque shoulder length gage with 6″ extension arm and 45° contact point holder	TS-1001-1
2⅜” (60.325 mm) & Larger	1” – 5” (25.4 mm – 127 mm)	.0005″	–	Torque shoulder length gage, specify taper*	TS-4001
2⅜” (60.325 mm) & Larger	1” – 9” (25.4 mm – 228.6 mm)	.0005″	–	Torque shoulder length gage, specify taper*	TS-4002

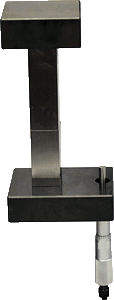

	–	–	–	Setting standard for TS-1000 Series	TSS-1000

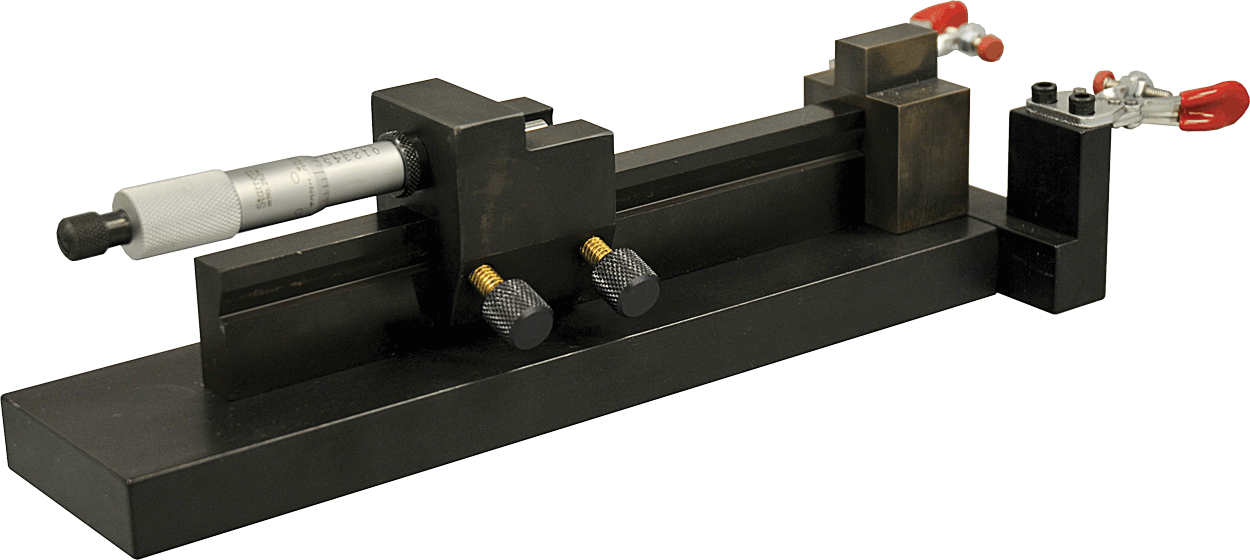

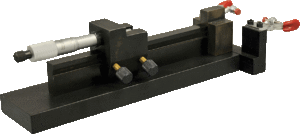

	–	–	–	Setting standard for TS-4000	TSS-4000
