Insert Identification
Insert Identification

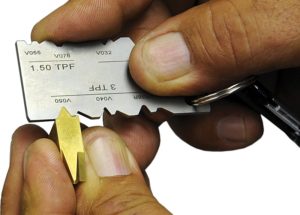

Gagemaker’s thread insert identifiers easily determine which threading insert the machinist is using. When an optical comparator is unavailable, the insert identifier will show which thread form is on the insert.
Insert identifiers are available for Rotary Shouldered Connections, Tubing & Casing, and Internal ACME and Stub ACME threads.
| Thread Type | Thread Form | Taper per Foot/Pitch | Model |
|---|---|---|---|
| Rotary Shouldered Connections | V-0.032, V-0.038R, V-0.040, V-0.050, V-0.055, V-0.065, & V-0.076 | 1.5", 2", & 3" | TI-RSC-60 |
| Rotary Shouldered Connections | A-0.094, 90-V-0.050, & 90-V-0.084 | 1.25", 2", 3", & 3.373" | TI-RSC-90 |
| Straight | Internal ACME | 3P, 3.5P, 4P, 5P, 6P, 8P, 10P, 12P, 14P, & 16P | TI-ACME-INT |
| Straight | Internal Stub ACME | 3P, 3.5P, 4P, 5P, 6P, 8P, 10P, 12P, 14P, & 16P | TI-SACME-INT |
| Tubing & Casing | Round, 10 Round, & ¾" and 1" Internal and External Buttress | ¾" and 1" | TI-T&C |
